Legend

  • a(+1)
    b(+1)

    (+1) Suggested tolerance for the
    counter hole (mm)

  • x - y

    Dimensions of the front panel including the frame

  • e - f

    Internal dimensions of the container

  • g

    Useful passage 90°

  • g1

    Useful passage 175°

  • h

    Depth of the inner container

  • h1

    Depth of the inner container 1st drawer

  • h2

    Depth of the inner container 2nd drawer

  • h3

    Depth of the inner container 3rd drawer

  • l

    Total depth of the item from
    the counter front

  • s

    External projection from
    the counter front

  • u

    Useful internal depth

  • u1

    Useful internal depth 1st drawer

  • u2

    Useful internal depth 2nd drawer

  • u3

    Useful internal depth 3rd drawer

  • z

    Total depth of the frame from
    the counter front

  • Measurements in mm

CS0

CS0

cover frame

Item Diameter Size
Ø x y h1 h2
CF0 211 Ø 229 Ø 206,3 63,7 28,1

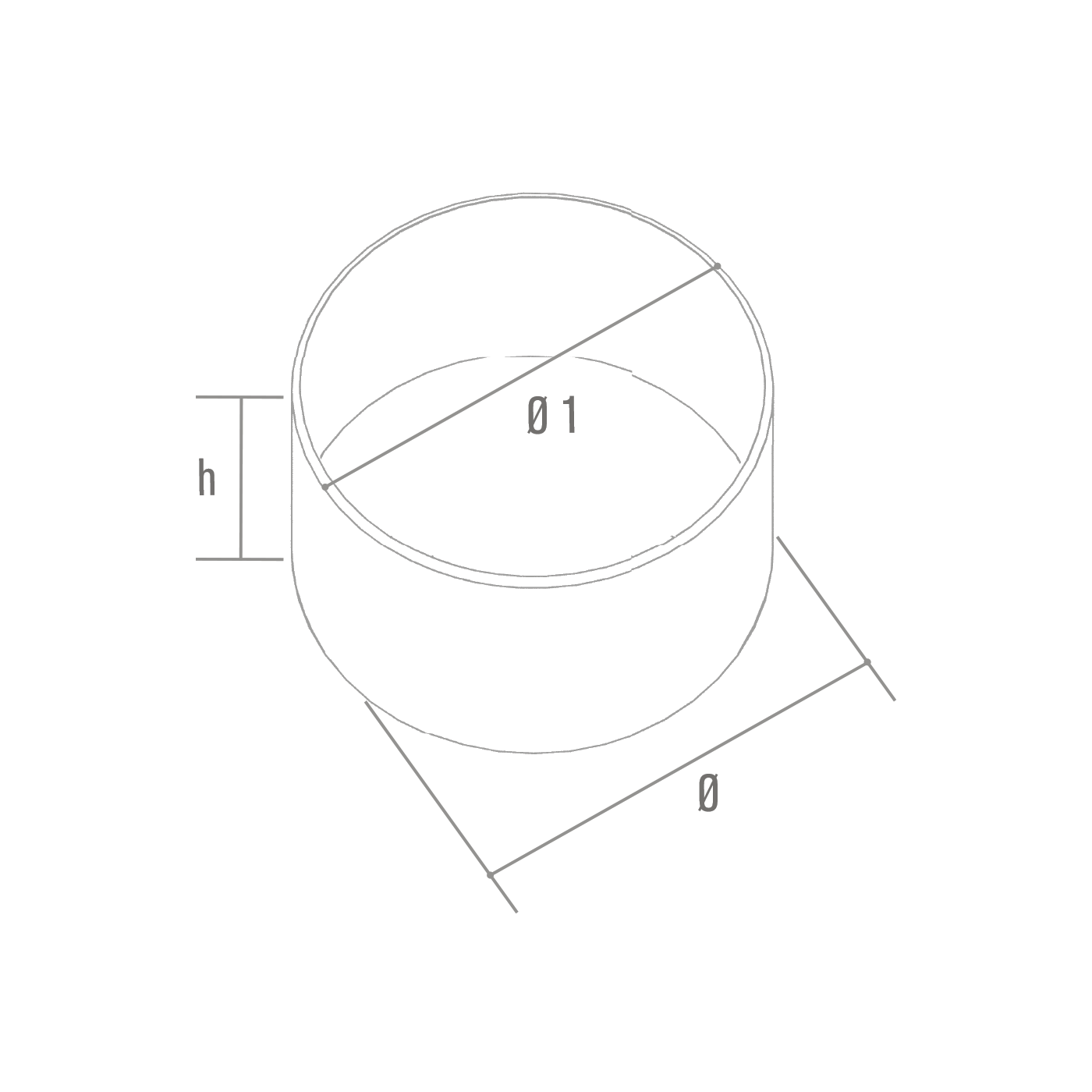

geometrie CS0
